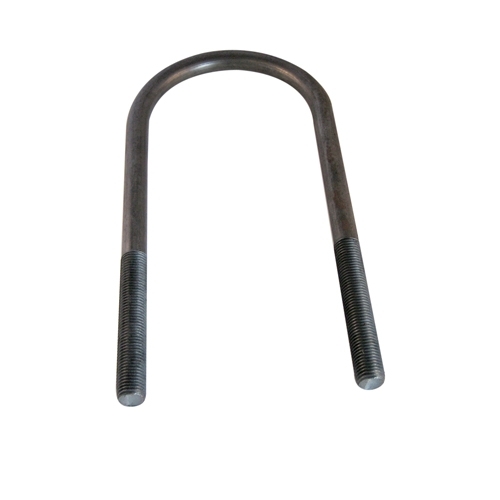

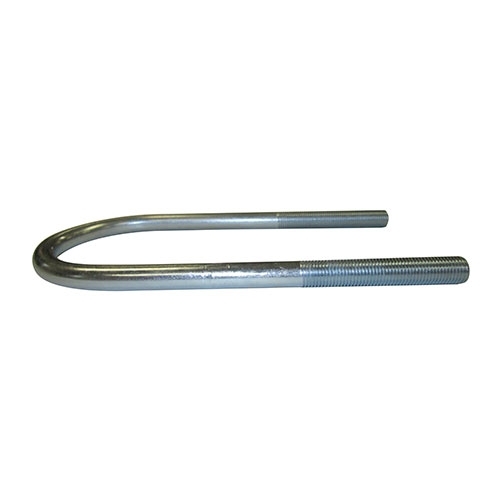

Replacement Front Leaf Spring U-bolt Clip
Fits 41-64 MB, GPW, CJ-2A, 3A, 3B, M38
New Replacement Front Leaf Spring U-bolt Clip (1 required per vehicle)
Direct replacement U-bolt Clip to hold your leaf spring assembles to your axle tube secure. Measures 2-7/8" inside diameter. (1) required for front inner passenger side to clear large tube diameter on Dana 25 front ends.
Fits:
41-45 MB
41-45 GPW
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
50-52 M38
Note:
Use part number A575 for remaining front U-bolt clips required
| Part # | Price |
|---|---|
| A574 | $12.44 MSRP: |
$12.44
MSRP:
Product Videos
Questions & Answers
Do these U bolts include the 2 nuts and 2 washers?
Willys Jeep Parts Tech:
339372 is separate. We can include the washers too for you.
339372 is separate. We can include the washers too for you.
What is the length of these U-bolts?
Willys Jeep Parts Tech:
Overall Length: 6-7/8" OD: 3-1/8" ID: 2-1/2" Stud to Stud: 2-3/4"
Overall Length: 6-7/8" OD: 3-1/8" ID: 2-1/2" Stud to Stud: 2-3/4"
I'm using a 1" lift on a 47 cj2a will these do the job? Thanks
Willys Tech:
I don't think that would really effect this item. You should be fine with it.
I don't think that would really effect this item. You should be fine with it.
I need 4 axle U Bolts & nuts for the front axle on 1960 CJ5. Three are 3-5/16 and one is approx 3-3/4. Which part numbers do I order. Do you have a complete kit?
Willys Tech:
A1097 & 808988 are the two proper part numbers for the CJ-5 front u-bolts.
A1097 & 808988 are the two proper part numbers for the CJ-5 front u-bolts.
Is this the U-Bolt also used for the rear springs on a 1943 Willys MB? Thanks
Willys Tech:
Yes that is correct.
Yes that is correct.
How tall is this bolt from the bottom of the threads to the top of the arch? I ask because it needs to be long enough to travel through the torque reaction spring. And my current spring pack has some replacement leafs that are thicker than the originals. Thanks!
Willys Tech:
This will be the proper one and fit for the torque spring no problem.
This will be the proper one and fit for the torque spring no problem.
