Fuel Tank Pick Up Unit
Fits 50-52 M38

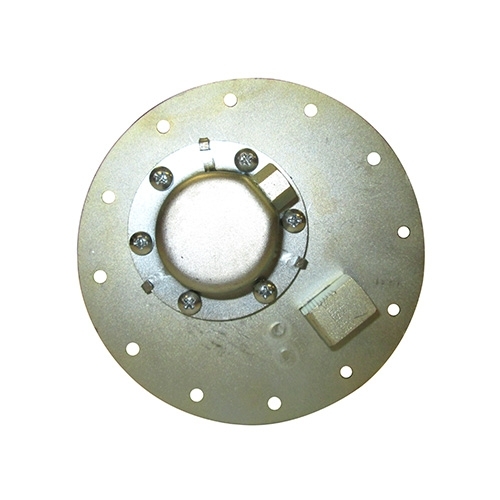

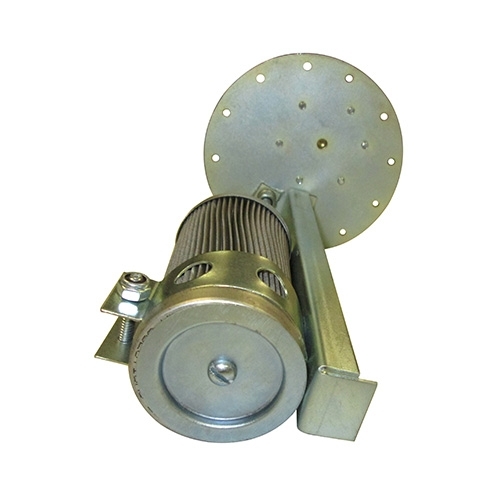

New Fuel Tank Pick Up Unit
Mounts in the large hole on top of your military tank for the fuel pick-up. Comes complete with filter insert. Made in the USA.
Fits:
50-52 M38
| Part # | Price |
|---|---|
| M38FUELPICKUP | $199.99 MSRP: |
$199.99
MSRP:
Product Videos
Questions & Answers
Do you sell the gaskets for this part and part 800201 separately?
Willys Jeep Parts Tech:
Yes we do. The gasket for the pick up is 7351315 and the gasket for the sending unit is 648927
Yes we do. The gasket for the pick up is 7351315 and the gasket for the sending unit is 648927
What is the thread size for the fitting used on the fuel pickup?
Willys Jeep Parts Tech:
It is 1/4 "
It is 1/4 "
Does this unit come with a Gasket?
Willys Jeep Parts Tech:
Separate item. See part number: 7351315
Separate item. See part number: 7351315
Where does the vent line from the fuel pickup on an M38 go?
Willys Jeep Parts Tech.:
Email mike@kaiserwillys.com and we can send you a diagram. It routes all the way back to the engine compartment.
Email mike@kaiserwillys.com and we can send you a diagram. It routes all the way back to the engine compartment.
I have your fuel pickup M38fuelpickup. I need to know what size the fitting is for the vent line. The original manual specs 1/8 pipe thread but a 1/8 NPT does not fit, it is to large to even start. I have also tried the nearest metric size with no luck. Thanks!
Willys Jeep Parts Tech:
3/16 inverted flare is what was used.
3/16 inverted flare is what was used.
Your photos of the M38 pick up show two different filter types. Which one will I get if I order? It looks like they must work differently.
Willys Jeep Parts Tech:
The photos are correct now. It comes with the cartridge. Thanks
The photos are correct now. It comes with the cartridge. Thanks
Do you carry a replacement vent line that connects to the pick up?
Willys Jeep Parts Tech:
That long vent line has to be made locally.
That long vent line has to be made locally.
what gasget material will i need?
Willys Jeep Parts Tech:
7351315 This is what you need.
7351315 This is what you need.
Will Fuel pickup unit M38FuelPickup work with 12v conversion? Or do I need a different 12v pickup unit?
WIllys Jeep Parts Tech:
These work off of suction/gravity and voltage doesn't effect it.
These work off of suction/gravity and voltage doesn't effect it.
Can I get just the filter/pickup portion? If so, what part number is it?
Willys Tech:
Yes but please call us toll free. We should have them by themselves.
Yes but please call us toll free. We should have them by themselves.
Does this include the gasket?
Willys Tech:
You have to make the gasket.
You have to make the gasket.
