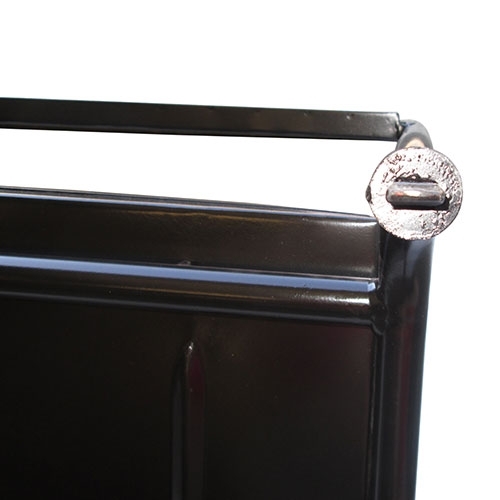

Rear Seat Frame
Fits 46-49 CJ-2A
New Replacement Rear Seat Frame

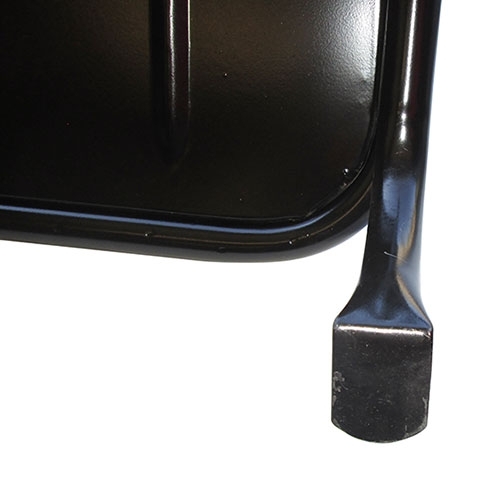

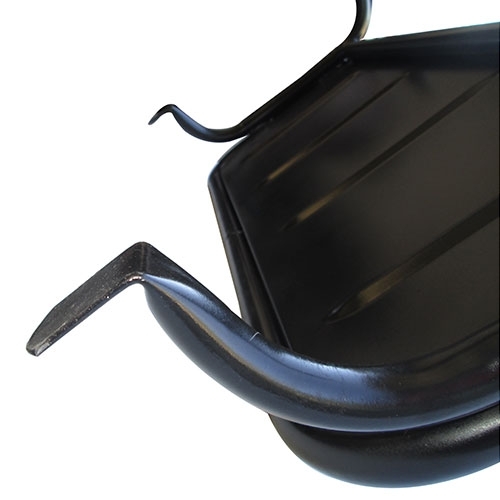

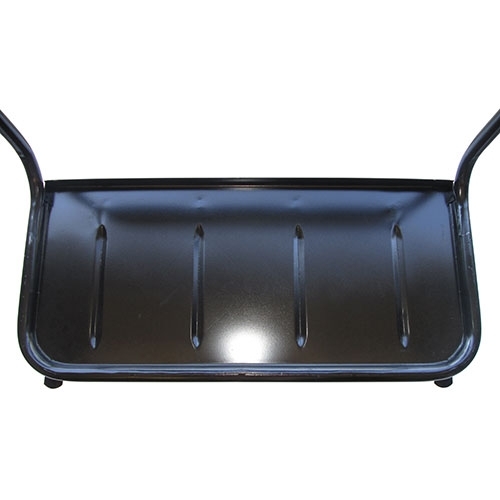

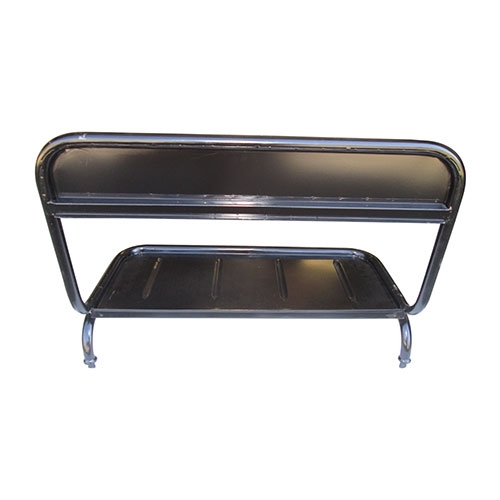

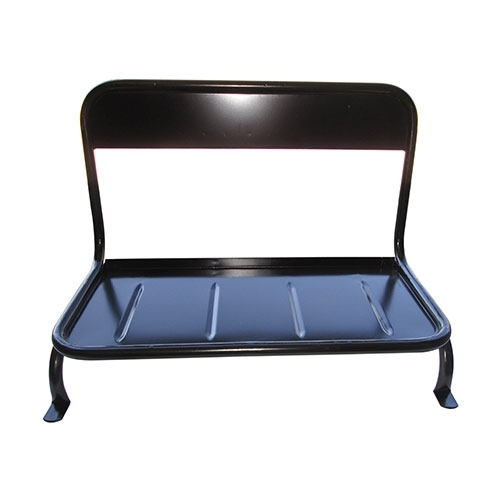

This is the seat that slides under the brackets on the floor and clips into the rear brackets bolted under the floor board.
Fits:
46-49 CJ-2A
| Part # | Price |
|---|---|
| A2782-2A | $374.99 MSRP: |
$374.99
MSRP:
Product Videos
Questions & Answers
Will this rear seat frame work on my CJ-2A VEC Jeep?
Willys Jeep Parts Tech:
Email some photos of your rear cargo area to mike@kaiserwillys.com and we can see what you have going on.
Email some photos of your rear cargo area to mike@kaiserwillys.com and we can see what you have going on.
I bought the bench and seat cushions but no instructions on how to install them. Do you have a video and/or instructions on how to install the rear seat frame and cushions?
Willys Jeep Parts Tech:
Email mike@kaiserwillys.com and we can send it over. Thnks!
Email mike@kaiserwillys.com and we can send it over. Thnks!
Will this fit a DJ3A/
Willys Jeep Parts Tech:
With little modification yes.
With little modification yes.
Hi, Would this back seat fit in a 1950 Willys.....I have a 36 inch width between the wheel wells. And, does it need to have different holes drilled in the back to make it compatible?
Willys Jeep Parts Tech:
Please email mike@kaiserwillys.com what vehicle you have an we can help.
Please email mike@kaiserwillys.com what vehicle you have an we can help.
Looking to purchased required hardware to mount rear seat. I found the pivot bracket for the rear, but unable to find where you may have the front strap brackets. Thanks.
Willys Jeep Parts Tech:
Those are part of your rear floor board and welded. Someone must have cut your old ones off.
Those are part of your rear floor board and welded. Someone must have cut your old ones off.
Good afternoon, I am in the UK and have a CJ2a. I am looking for a rear seat and wondered if you ship to the UK? Kind regards
Willys Jeep Parts Tech:
Yes, please email mike@kaiserwillys.com your full shipping address and we can quote you out. Thanks!
Yes, please email mike@kaiserwillys.com your full shipping address and we can quote you out. Thanks!
This would be a new install for my '48 CJ2A. Does mounting hardware come with this frame? Instructions?
Willys Tech:
I would also order part number: REARBRKT for the seat frame. That will fix you up. It just pops in place. Your rear tail lights if they have a double filament bulb will work for turn signals too.
I would also order part number: REARBRKT for the seat frame. That will fix you up. It just pops in place. Your rear tail lights if they have a double filament bulb will work for turn signals too.
What part number do I refer to for a 59 cj5 rear seat frame. Thank you
Willys Jeep Parts Tech:
Please call us toll free and ask for Mike M or email mike@kaiserwillys.com and we can try to help out with your CJ-5.
Please call us toll free and ask for Mike M or email mike@kaiserwillys.com and we can try to help out with your CJ-5.
If you replaced your tub would you have to drill holes for the rear brackets to be installed into the tub? Is there a video available to show how the rear brackets should be installed?
Willys Jeep Parts Tech:
The cut outs are there for the REARBRKT part number. You would just need to drill the 2 mounting holes then. The slots for the forward legs are already ready to go in the floor board.
The cut outs are there for the REARBRKT part number. You would just need to drill the 2 mounting holes then. The slots for the forward legs are already ready to go in the floor board.
Which seat cushion fits this fram?
Willys Jeep Parts Tech:
B2301-5 B2301-6 These are the two part numbers above for upper and lower cushion.
B2301-5 B2301-6 These are the two part numbers above for upper and lower cushion.

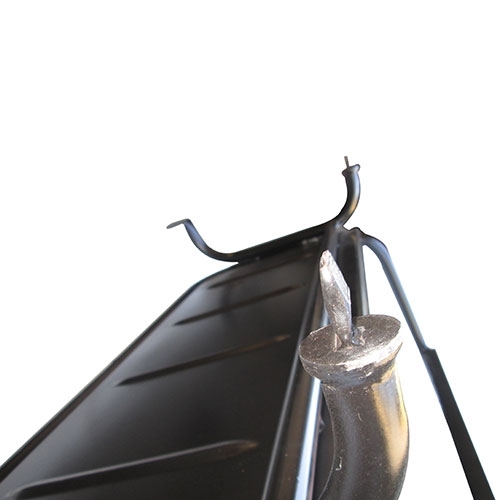

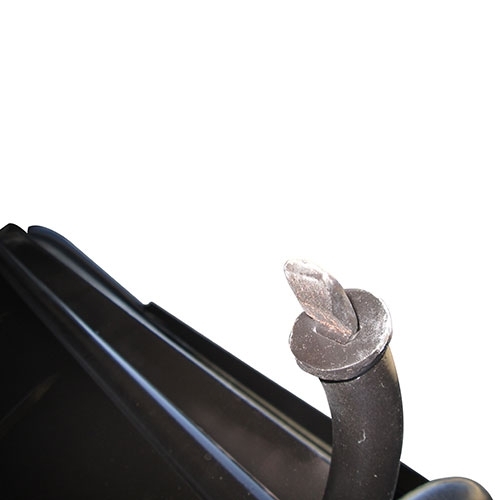

Do holes need to be drilled to mount the A2782-2A? Why the studs on the back seat brackets on the bottom of the legs?
Willys Jeep Parts Tech:
You really shouldn't ave to drill any holes to mount. You use your original part number: REARBRKT and then the front legs just slot into the recess on the floor board.
You really shouldn't ave to drill any holes to mount. You use your original part number: REARBRKT and then the front legs just slot into the recess on the floor board.
I have a 1952 M38 and a 1948 CJ2A, will this seat interchange between both?
Willys Jeep Parts Tech:
Yes, But I think you may have to drill holes for the drivers seat to mount.
Yes, But I think you may have to drill holes for the drivers seat to mount.
Hi, will this seat frame fit a CJ3a ? Thanks.
Willys Tech:
A2782-3A is the part number you want for a CJ-3A. But yes they will interchange.
A2782-3A is the part number you want for a CJ-3A. But yes they will interchange.
what is the width of the frame
Willys Tech:
Appox 32 like original
Appox 32 like original
Is there a mountable fender siren for a 1946 willys cj2a?
Willys Tech:
They never used a siren on the CJ's. That is a tough item to find.
They never used a siren on the CJ's. That is a tough item to find.
What is the full dimensions in inches?
Willys Tech:
Are you asking for box size? or bottom pan? or what exactly? These are just like the original CJ-2A frames, They fit down between the wheel wells in your rear floor pan.
Are you asking for box size? or bottom pan? or what exactly? These are just like the original CJ-2A frames, They fit down between the wheel wells in your rear floor pan.
Do you have one that the back is folding? Or would I have to modify one to make it so? Thank s,Luc
Willys Tech:
They never were originally folding. You would have to modify to make it do that.
They never were originally folding. You would have to modify to make it do that.
Do you stock a rear seat frame seat belt kit?
Willys Tech:
I would order qty 2 of part number: BELT-1
I would order qty 2 of part number: BELT-1
I have a Willy's station wagon which I think never had a back seat but I was wondering if I did want to put a back seat in which of the models you have would best suit this purpose?
Willys Tech:
We can get you a good used seat frame for the Station Wagon. Please call us toll free.
We can get you a good used seat frame for the Station Wagon. Please call us toll free.
What are the dimensions of this seat?
Willys Tech:
It sits right in betweeen the wheel wells just like original.
It sits right in betweeen the wheel wells just like original.
I have a '47 cj2a but the seat frame doesn't look like the one pictured here. It has a folding/removable seat back. The seat hangs off the rear fender wells. Could it be off another year jeep? Does it even matter when I decide to order new cushions?
Willys Tech:
It is off another jeep. This rear seat frame is exactly like the original for a CJ-2A. Please call us toll free.
It is off another jeep. This rear seat frame is exactly like the original for a CJ-2A. Please call us toll free.
Isn't the cj2a and the cj3a rear seat frames the same?
Willys Jeep Parts Tech:
No they are not the same. The 3A had a taller back rest panel than the 2A.
No they are not the same. The 3A had a taller back rest panel than the 2A.
Willys Tech:

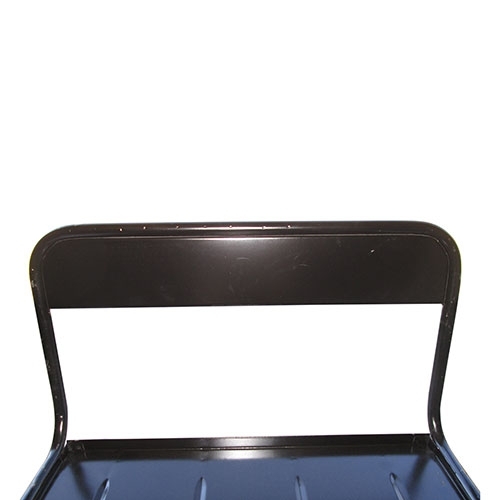

Originally they were different due to the upper part of the rear frame where your back went.
Originally they were different due to the upper part of the rear frame where your back went.
