Shop Kaiser Willys

Steering Gear Box Sector Shaft Repair Kit 1"
Fits 54-64 Truck, Station Wagon with 6-226 engine (Out of Stock)

Part # 907999K

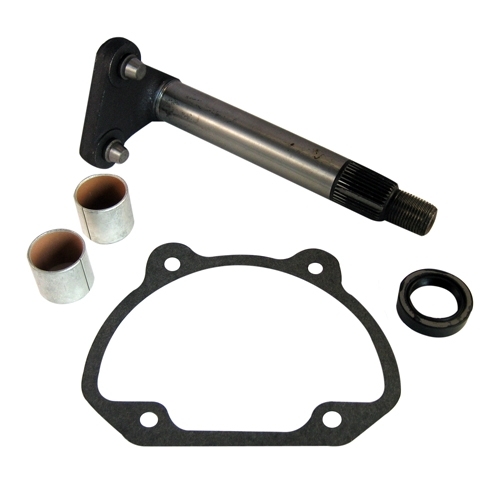

New Steering Gear Box Sector Shaft Repair Kit (1 required per vehicle)

Complete with new 1" diameter sector shaft, bushings, gasket, and oil seal. Eliminates slop in your Ross steering gear. The best place to start when your steering is loose.

Fits:
54-64 Truck
54-64 Station Wagon

Part # Price
907999K

$89.99

MSRP:

$89.99

MSRP:

Product Videos

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

Will Part No 907999K fit the Ross box in an FC170. Thanks

Willys Jeep Parts Tech:
Yes, that is correct.

is this all i need to rebuild my steering box on my 55 willys pick up w/h flat head 6 cyl, 4x4

Willys Jeep Parts Tech:
We can help with other parts as well. Please call us toll free or email mike@kaiserwillys.com for options.

Will this fit a 1950 willys truck?

Willys Jeep Parts Tech:
No, that year uses a 15/16" diameter sector shaft. We do have the bushings and oil seal for you if you like.

How do you get the old bushings out of the steering gear box?

Willys Jeep Parts Tech:
I typically use a socket to drive it out in a vise.

Is it possible to replace oil seal on the sector shaft by removing the pitman arm and leaving the steering box on the frame

Willys Jeep Parts Tech:
Yes, that is correct.

How many teeth on the steering shaft that attaches to the pitman arm?

Willys Jeep Parts Tech:
Sorry, I dont have a way to count currently due to them being out. If you count the number of teeth on your pitman arm, they are the same.

Where are the ball bearings?

Willys Jeep Parts Tech:
646084 is the part number for the bearing kits.

Will this one work on the Planar of these years listed?

Willys Jeep Parts Tech:
Typically no. It's more set up for the 4WD vehicles but you could measure your sector shaft to confirm it. Thanks

What is the shaft length (from tip to base) on part number 907999k?

Willys Jeep Parts Tech:
7.5" overall like original.

What is shaft lenth and distance center to center of pins

Willys Jeep Parts Tech:
The length of the sector shaft itself comes out to 6-7/8". The distance between the pins measures out at 2". Thanks!

need steering gear box selector shaft for 1947 willys truck

Willys Tech:
We can help with a 'Tightsteer' kit and the bushings and oil seal on that. Please call us toll free.

I am restoring a 1948 Jeep Willys Pickup and during the disassembley I realized that the steering gear housing cover was cracked. However once it was removed I discovered that it was completely broken. I can't find any where that carries the cover or the whole steering gear housing as a unit any help on this would be awesome.

Willys Tech:
We can get you good used on this. Please call us toll free.
