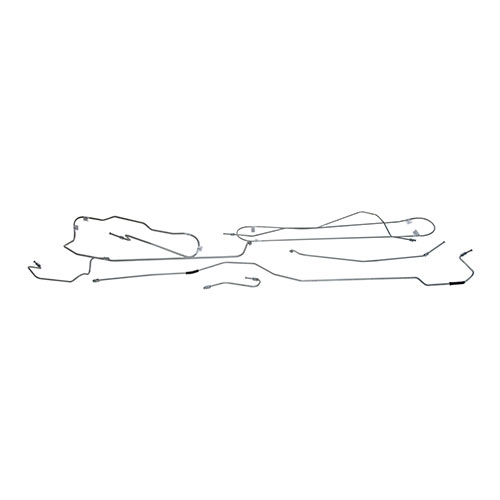

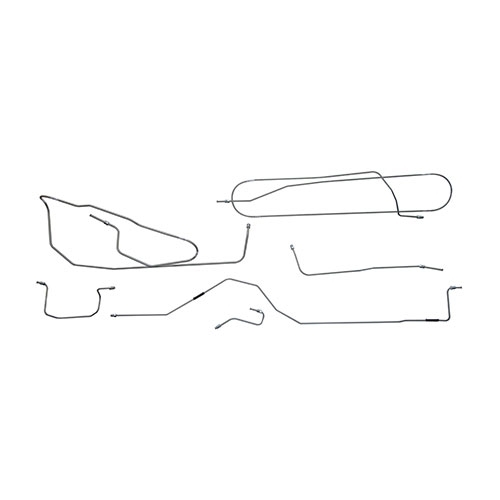

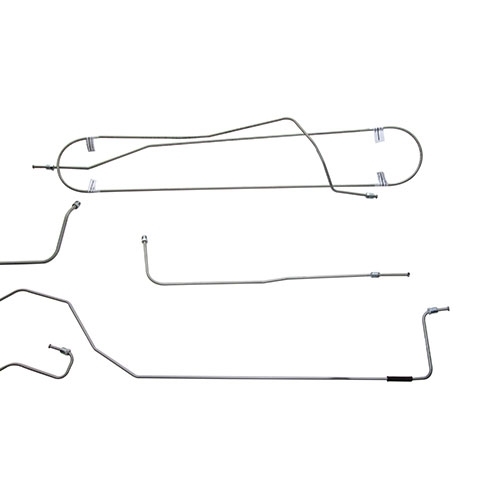

US Made Complete Formed Steel Brake Line Kit (F 4-134 & 6-226)
Fits 55-62 Station Wagon, Sedan Delivery with Dana 44 rear, Late

Part # MS00106

New Replacement Pre-Formed Steel Brake Line Kit

Made in the USA

Our own reproduction of all the steel lines from front to back on the Willys Station Wagon with the proper fitting double flared on the ends.

Application:
For 4x4 Station Wagon with F 4-134 & 6-226 engines with Dana 44 rear

Also fits 2x4 Sedan Delivery with C channel frame with Dana 44 rear

Great kit to save time bending brake lines.

1 required per vehicle.

Fits:
55-62 Station Wagon
55-62 Sedan Delivery

Note:
The rear axle in 1955 and 1956 should be measured to confirm the correct rear end.  The measurements are from the backing plate to the center of the differential cover.

The drivers side is 27 3/4" and the passengers side is 25". This is for the later rear end housing.

Part # Price
MS00106

$239.99

MSRP:

$239.99

MSRP:

1 Item has been added to your cart!
Close

Questions & Answers

Please Wait...

Ask Question Add Answer

All questions will be displayed after moderation. All answers will be displayed after moderation.

have a 54 sedan dilevery i am puting dana 44 's under . disc front . would i need a larger front brake line

Willys Jeep Parts Tech:
Yes you would. These are set up for original drum brakes.

I have a 61 Overland 4X4 that has some kind of pump fed by the brake line from the master cylinder. The pump is mounted under the drivers seat area. What is this pump for?

Willys Jeep Parts Tech:
Email mike@kaiserwillys.com some images and we can help you out. Thanks!

Will this work for 2wd 63 wagon or any part of it?

Willys Jeep Parts Tech:
You may have a 1962 titled as a 1963.

Does this fit a 1960 willys wagon with a Chevy 350 engine?

Willys Jeep Parts Tech:
As long as your brakes have not been changed it should.

Will this work on a 4x4 1952 Willys wagon with the 4-134 F engine?

Willys Jeep Parts Tech:
Sorry, they are different from 55+ for the Willys Station Wagon.

I only need one line in a kit. Is it possible to buy one piece?

Willys Jeep Parts Tech:
I'm sorry but it's only sold as a kit. If you're looking for individual lines, go locally and buy a pre-flared line and bend it to fit. Thanks

54 wagon brake line kit ???

Willys Jeep Parts Tech:
Yes, it lists the Station Wagon in that year.

Do you have a preformed kit for a 1960 Pick-up truck

Willys Tech:
We are working on those now. They should become available in approximately 45 days.
