LED Tail & Stop Light Conversion Assembly (Pair)
Made in the USA.
This conversion kit takes the standard taillight base and upgrades it to a more solid state LED version in 12 volts.

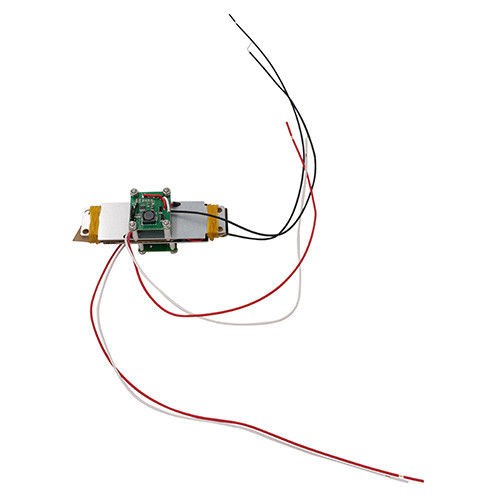

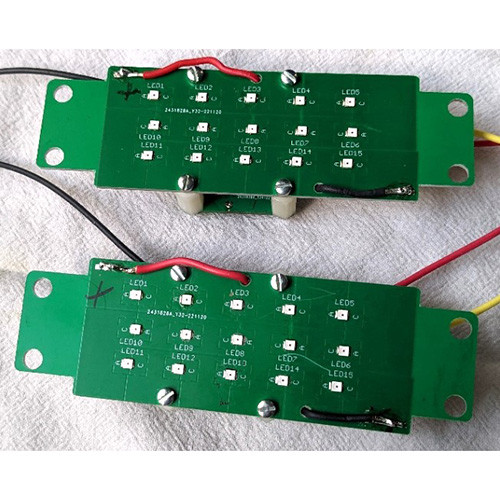

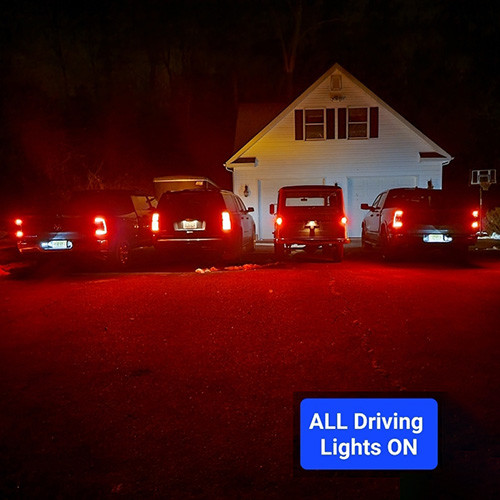

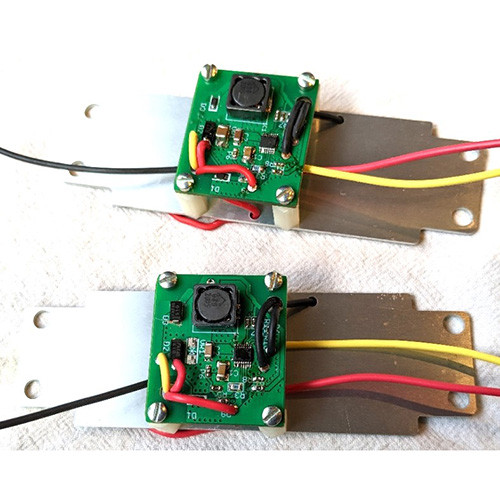

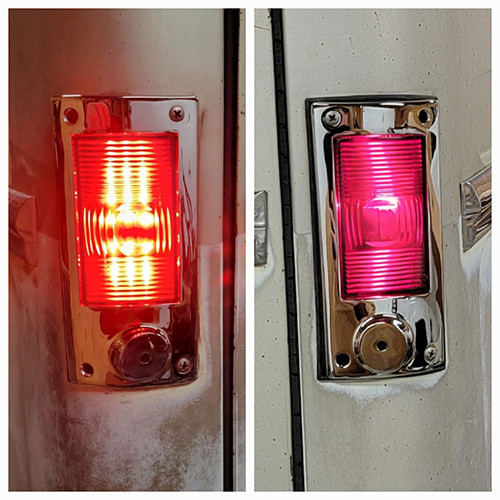

They replace the bulb and mounting bracket with an aluminum PCB with 15 LEDs. It is about as bright as modern cars and a lot safer for drivers
The 15 LEDS are in series and they are driven by a current limiting switching power supply. About 32-34 volts when the brake lights are on. They maintain brightness to a bot below 7v and below that, they just turn off.

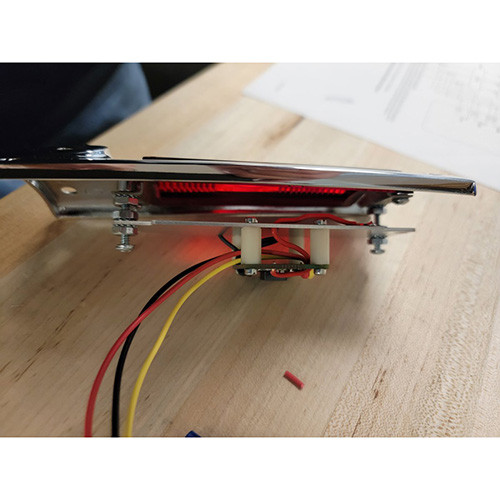

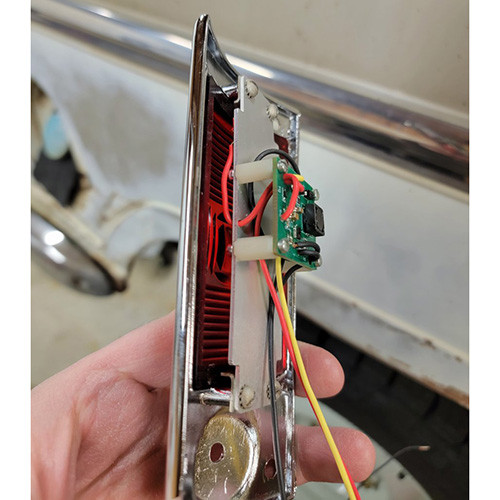

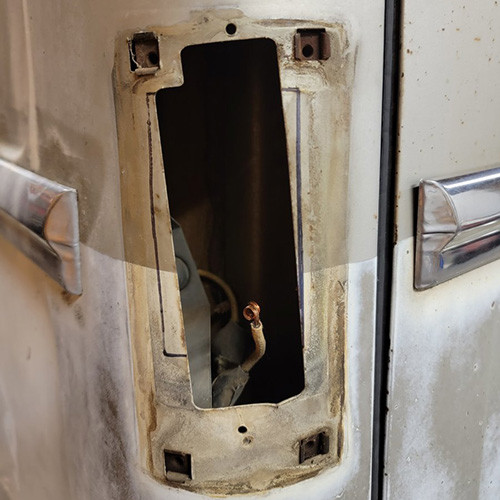

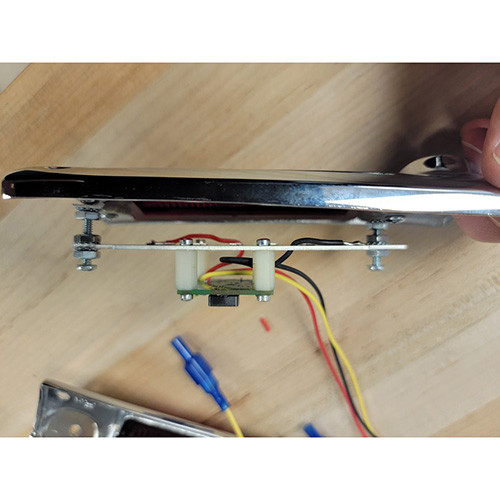

Works inside your oringal housing and tail light assemblies (part number SWTAIL)
Install:
Red - Power
Black - Turn Signals
White - Ground
Fits:

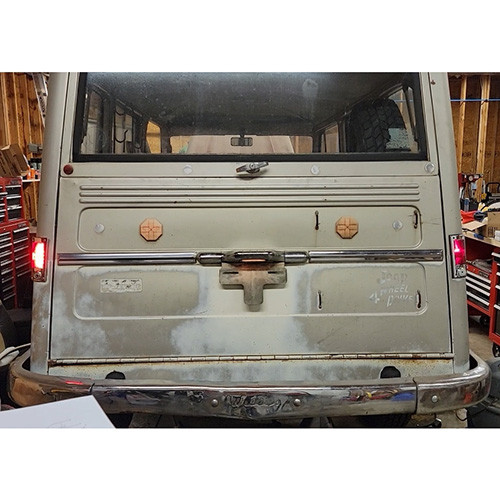

52-64 Station Wagon
Note:
Please make sure you are using a LED specific turn signal flasher (664136) as the brake lights pull less than 1/2 the amps and the running lights even less.
